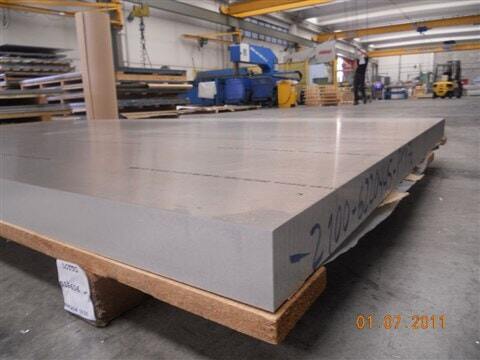

Rolled plate
Ergal
EN AW 7075

Ergal is available in a hardened, stretched, and tempered state (T651) in thicknesses of up to 200 mm. For greater thicknesses there are rolled materials that are not pulled; cold compress or forged materials that are quite unstable during processing and are replaced by innovative molten or cast products.

Ergal is also available in extruded or cast and machined round bars in diameters of up to 500 mm.

• Rolled plates
• Extruded round bars
• Cast and turned round bars

Chemical Composition (%weight)

Physical properties

1 MPa = 1 N/mm² = 0.10197 kg/mm²

• Specific weight: 2.81 g/cm³
• Elastic modulus: 72000 MPa
• Thermal conductivity: 115-140 W/m K
• Electrical conductivity (T=20°C): 17-21•10⁶ S/m
• Thermal linear expansion coefficient: (20°-100°C): 23.6·10^-6 K^-1

Minimum values (state T651 / standard EN 485-2)

Typical mechanical values for different thicknesses

• Download the technical data sheet

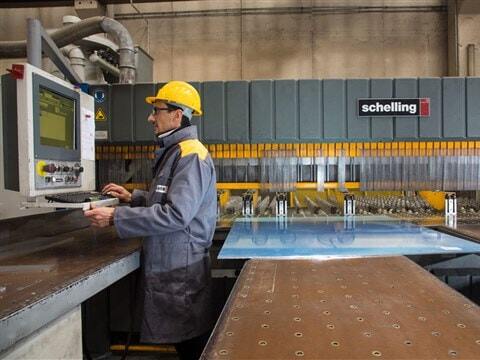

Custom cuts can be made using a belt or circular saw upon request; the following processing operations are also available:

• Creation of specially designed plates;
• Creation of special profiles using water cutting technology;
• Rotating circular saw cutting and finishing;
• Round, flat, and square bar cutting;
• Cutting and trimming for thicknesses of up to 200 mm.
