Milled plate
Precisal Cast 50
EN AW 5083

Precisal Cast 50 is a cast and subsequently milled product with a minimal planarity tolerance and a thickness tolerance with a resolution of a tenth of a degree.

In order to ensure maximum protection, both faces are protected with 2-sided 100 micron laser PVC film. Used for the production of precision mechanical components that require high-formal stability.

The main characteristic that distinguishes this alloy from rolled products is its high degree of dimensional stability both during and after processing.

technical characteristics

Weldability:

  • TIG/MIG: optimal
  • Filler metal: AA 5183 / AA 5356

Surface treatments:

  • Technical anodisation: suitable
  • Decorative anodisation: suitable

Workability: optimal

Resistance to corrosion:

  • Marine atmospheres and corrosive environments: optimal

Availability

Precisal Cast 50 is available in the thicknesses and widths listed below:

Thicknesses [mm]Format [mm]
6 - 1001500 x 3020
2000 x 4000

Other formats are available upon request.

General information

Chemical Composition (% weight)

SiFeCuMnMgCrZnTi+Zr
min0.404.000.25
max0.400.400.101.004.900.250.250.15

Physical properties

1 MPa = 1 N/mm2 = 0.10197 kg/mm2

  • Specific weight: 2.66 g/cm3
  • Elastic modulus: 71000 MPa
  • Thermal conductivity: 105-120 W/m K
  • Electrical conductivity (T=20°C): 15-17•106 S/m
  • Thermal linear expansion coefficient: (20°-100°C): 23.8·10-6 K-1

mechanical properties

Typical mechanical values

Thickness (from…to) [mm]Rm [MPa]Rp0.2 [MPa]A50 [%]HB
6 - 1002651301070

Tolerances

Planarity and roughness tolerances

Thickness [mm]Thickness [mm]Planarity [mm/m] < =12 >15Roughness [µm]
6 - 160+ - 0,10.40 - 0.1370

download

services

Custom cuts can be made using a belt or circular saw upon request; the following processing operations are also available:

  • Creation of specially designed plates;
  • Creation of special profiles using water cutting technology;
  • Rotating circular saw cutting and finishing up to 2000 mm in diameter;
  • Custom thicknesses based on the customers' requirements;
  • Rings and flanges in aluminium.

photogallery

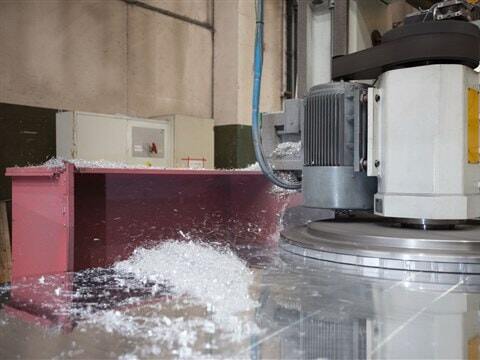

milled ergal

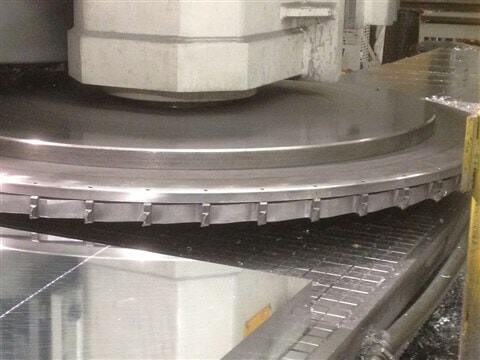

milled peraluman (2)
milled ergal (2)

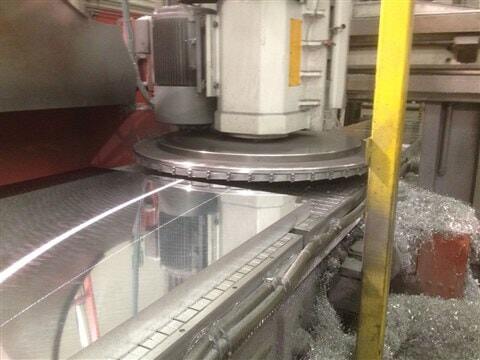

Milled Alcast

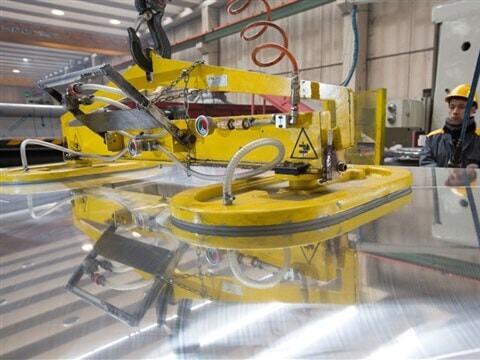

Milled Peraluman
